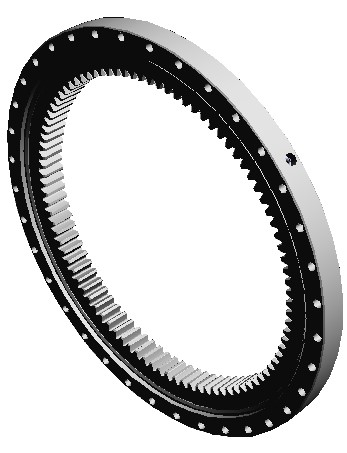

Model : CD-I.716.20.00.B
Specification Imperial Metric
SPINEA Part Number CD-I.716.20.00.B
Reference Kaydon Part Number N/A
Reference Torriani Part Number I.716.20.00.B
Type Standard
Teeth Internal

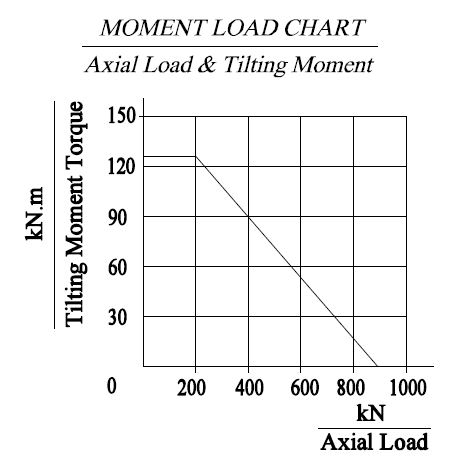

Max Moment Rating 94464.0 ft-lbs 128000 Nm
Approx. Weight 110 lbs 50 kg
Outer Diameter 28.189 in 716 mm
Inner Diameter 21.496 in 546 mm
Outer Bolt Circle Diameter 27.165 in 690 mm
Qty of Holes in Outer Ring 36
Outer Hole Size 0.551 in 14 mm
Inner Bolt Circle Diameter 23.819 in 605 mm
Qty of Holes in Inner Ring 36
Inner Hole Size N/A M12


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
